USB Charging Ports

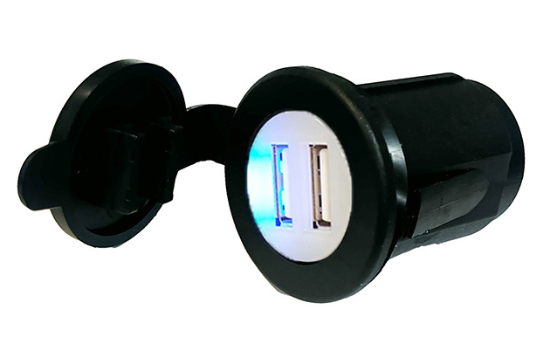

Dual Port 2.1A USB Charging Port offering efficient power delivery for multiple devices.

A1 Series

Standard charging speeds: 2.1A and 2.4A options - Face plate available
Electrical Rating : USB-A Dual Port: 2.1A Total (Shared Power),USB-A Dual Port: 2.4A + 2.4A (Independent Power Per Port),USB-A Single Port: 2.1A Total
Circuitry : N/A
Terminal : Quick Connect - 0.250”
Position : Mounts in a standardized 1-1/8” cut-out

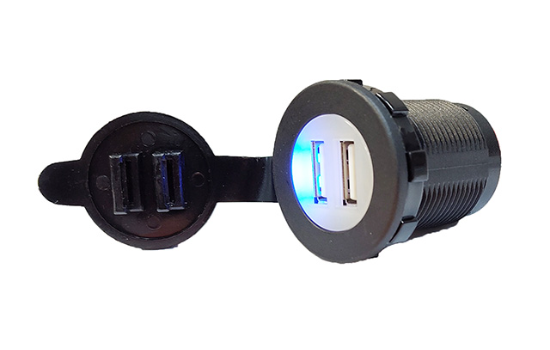

Dual Port 2.1A USB Charging Port with snap-in mounting for easy installation.

A2 Series

Standard charging speeds: 2.1A and 2.4A options - Snap-in mounting for easy installation
Electrical Rating : USB-A Dual Port: 2.1A Total (Shared Power),USB-A Dual Port: 2.4A + 2.4A (Independent Power Per Port),USB-A Single Port: 2.1A Total
Circuitry : N/A
Terminal : Quick Connect - 0.250”
Position : Mounts in a standardized 1-1/8” cut-out

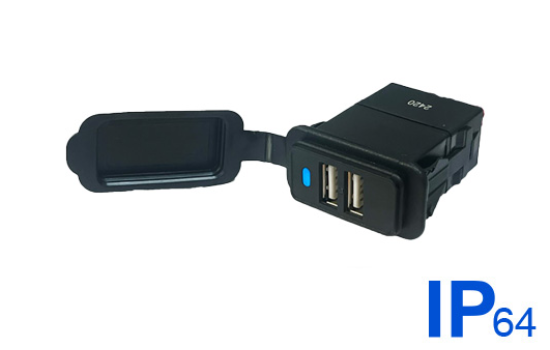

Dual Port 2.4A USB Charging Ports designed for SRD or Contura-style cut-out mounting.

A3 Series

Fast charging - Intelligent power delivery option
Electrical Rating : PD & QC 3.0 Dual Port (45W USB-C + 18W USB-A, 5V 2.4A Each When Shared),USB-A Dual Port: 2.4A + 2.4A (Independent Power Per Port)
Circuitry : N/A
Terminal : Quick Connect - 0.250”
Position : Mounts in an SRD or Contura-style cut-out

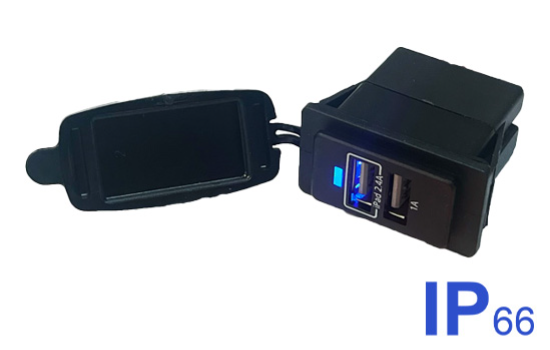

Dual Port USB Socket with 2.4A for smartphones and 1A for accessories

A6 Series

2.4A Port for modern smartphones and tablets – 1A Port for accessories and smaller devices
Electrical Rating : USB-A Dual Port: 2.4A + 1A (Independent Power Per Port)
Circuitry : N/A
Terminal : Quick Connect - 0.250”
Position : Mounts in an SRD or Contura-style cut-out

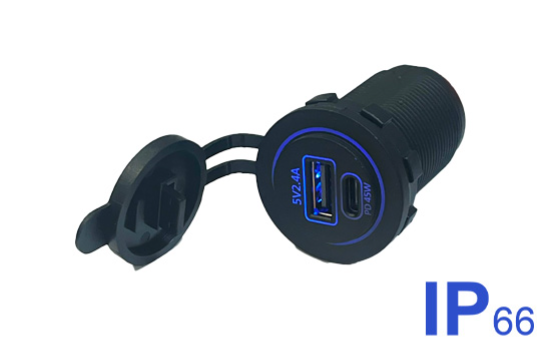

USB Power Delivery (PD) for dynamic fast charging, compatible with newer Apple devices

A7 Series

Power Delivery (PD) for dynamic fast charging - Supports newer Apple devices
Electrical Rating : PD & USB-A Dual Port (18W USB-C + 2.4A USB-A, 5V 2.4A Each When Shared),PD & USB-A Dual Port (45W USB-C + 2.4A USB-A, 5V 2.4A Each When Shared),PD Single Port (45W USB-C)
Circuitry : N/A
Terminal : Quick Connect - 0.250”
Position : Mounts in a standardized 1-1/8” cut-out

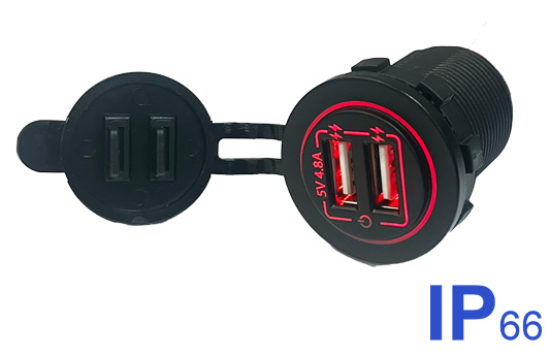

USB 2.4A for faster charging of modern phones with optional laser-etched backlight

A8 Series

Faster charging for modern phones: 2.4A - Laser-etched backlight option
Electrical Rating : USB-A Dual Port: 2.4A + 2.4A (Independent Power Per Port),USB-A Single Port: 2.4A Total
Circuitry : N/A
Terminal : Quick Connect - 0.250”
Position : Mounts in a standardized 1-1/8” cut-out

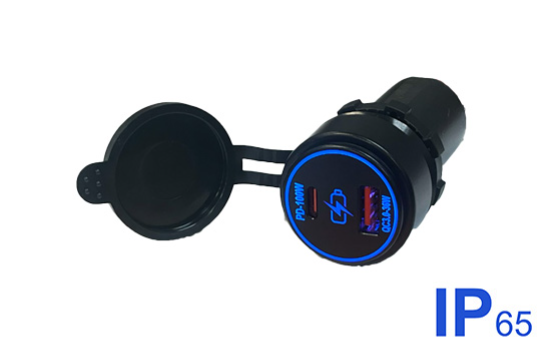

USB Charging Port featuring both Power Delivery (PD) and Quick Charge (QC) ports for efficient fast charging

A9 Series

Dynamic fast charging - Universal Power Delivery (PD) and Qualcomm QC 3.0 & QC 4.0
Electrical Rating : PD & QC 3.0 Dual Port (100W USB-C + 36W USB-A, 60W + 36W When Shared),PD & QC 3.0 Dual Port (60W USB-C + 36W USB-C),PD Dual Port (60W USB-C + 60W USB-C),QC 3.0 & QC 4.0 Dual Port (36W USB-A + 60W USB-C, 36W Each When Shared)
Circuitry : N/A
Terminal : Quick Connect - 0.250”
Position : Mounts in a standardized 1-1/8” cut-out

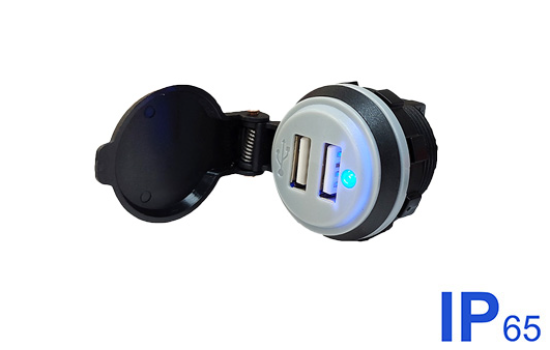

A10 Series

Low profile design with 1" mounting depth - Vertical terminals
Electrical Rating : USB-A Dual Port: 2.4A + 2.4A (Independent Power Per Port)
Circuitry : N/A
Terminal : Quick Connect - 0.250”
Position : Mounts in a standardized 1-1/8” cut-out

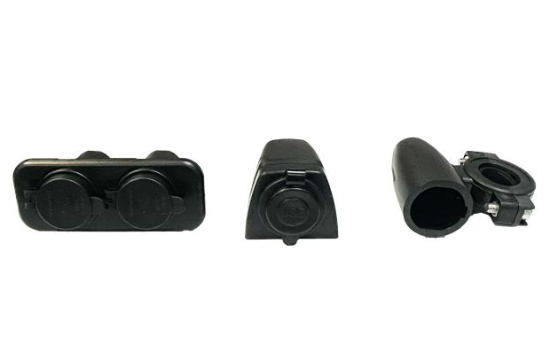

Accessories for 1-1/8” USB charging ports, including Surface Mount Case, Flush Mount Panel, and Handle Bar Mount.

Accessories

Accessories for 1-1/8” USB charging ports
Electrical Rating : N/A
Circuitry : N/A
Terminal : N/A
Position : Flush Mount Panel - Single Hole,Handle Bar Mount,Handle Bar Mount - Prewired,Surface Mount Case - Dual Hole,Surface Mount Case - Single Hole,Surface Mount Case - Three Holes

A 12V power outlet in a vehicle’s dashboard, showing a standard cigarette lighter socket with a plug inserted, commonly used for charging devices and powering small appliances.

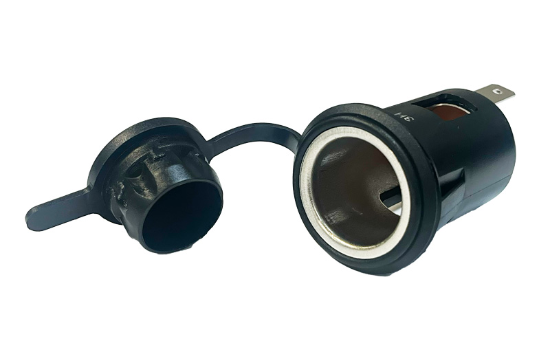

12V Power Outlets

10A and 20A - Bushing and Snap-in mounting options - Face plate available
Electrical Rating : 10A 12V,20A 12VDC
Circuitry : N/A
Terminal : Quick Connect - 0.250”
Position : Mounts in a standardized 1-1/8” cut-out
