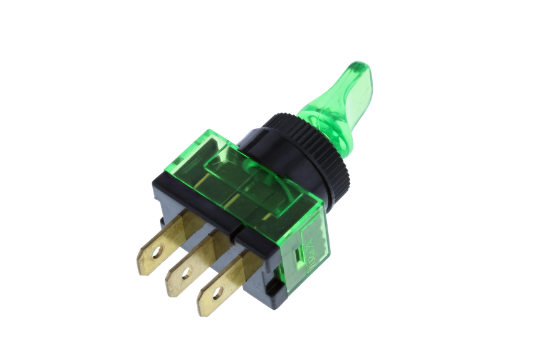

TE6-1A-DC-1-GL
![TE6-1A-DC-1-GL0-TOGGLE(1) TOGGLE SWITCHES_0](https://www.switchcomp.com/products/225/1538394170.png)
![TE6-1A-DC-1-GL0-TOGGLE(2) TOGGLE_1](https://www.switchcomp.com/products/225/1559585774.png)
Switch Type |
Toggle Switch |
Rating |
20A 12VDC |
Circuitry |
3P SPST |
Position |
OFF-ON |
Terminal |
Quick Connect - 0.250" |
Actuator |
Green clear, PC (94V 2) |
Cut Out |
ø12.2 |
Depth |
2 mm max |
Technical Diagram |
TE6-1A-DC-1-GL |
Property | Value |
---|---|
Contact resistance | 50m ohm Max |
Insulation resistance | DC 500V 100M ohm Min |
Dielectric strength | AC 1500V 1 minute |
Operation Temperature | -25°C ~ 85°C |
Property | Value |
---|---|
Frame / Housing | Black, PC |
Terminals / Contacts | Brass alloy |
LED | Green |
Actuator | Green clear, PC (94V 2) |
