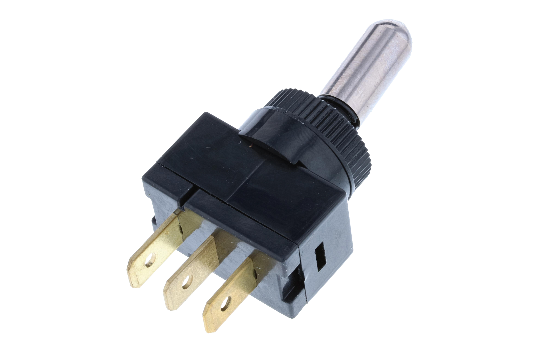

TE3-1A-DC-1-UL


Switch Type |
Toggle Switch |
Rating |
20A 12VDC |
Circuitry |
3P SPST |
Position |
OFF-ON |
Terminal |
Quick Connect - 0.250" |
Actuator |
Black, Nylon #66 +33%GF |
Cut Out |
ø12.2 |
Depth |
2 mm max |
Technical Diagram |
TE3-1A-DC-1-UL |
Property | Value |
---|---|
Contact resistance | 50m ohm Max |
Insulation resistance | DC 500V 100M ohm Min |
Dielectric strength | AC 1500V 1 minute |
Operation Temperature | -25°C ~ 85°C |
Property | Value |
---|---|
Frame / Housing | Black, PC |
Bottom | Black, PBT |
Terminals / Contacts | Brass alloy |
LED | Blue |
Actuator | Black, Nylon #66 +33%GF |
