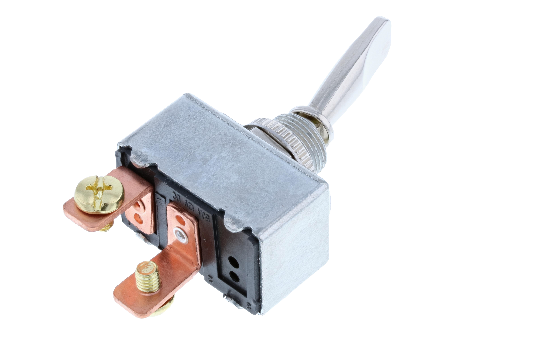

TD2-1A-DC-3-H
![TD2-1A-DC-3-Hnew9 TD2-1A-DC-3-Hnew10_0](https://www.switchcomp.com/products/193/1538392907.png)
![TD2-1A-DC-3-Hnew15 TD2-1A-DC-3-Hnew16_1](https://www.switchcomp.com/products/193/1538392908.png)
Switch Type |
Toggle Switch |
Rating |
50A 12VDC |
Circuitry |
2P SPST |
Position |
OFF-ON |
Terminal |
M4 Screw |
Actuator |
Zn alloy, Ni plating |
Cut Out |
ø12.2 |
Depth |
3 mm max |
Technical Diagram |
TD2-1A-DC-3-H |
Property | Value |
---|---|
Contact resistance | 50m ohm Max |
Insulation resistance | DC 500V 100M ohm Min |
Dielectric strength | AC 500V 1 minute |
Operation Temperature | -20°C ~ 85°C |
Property | Value |
---|---|
Frame / Housing | Zn alloy |
Actuator | Zn alloy, Ni plating |
