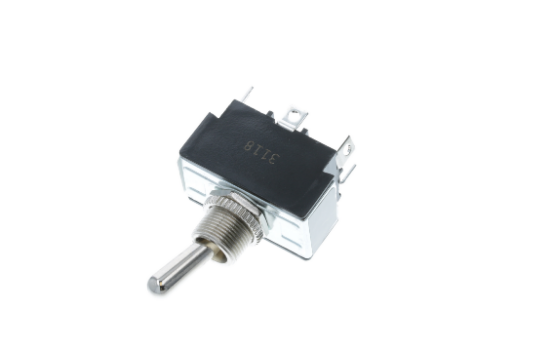

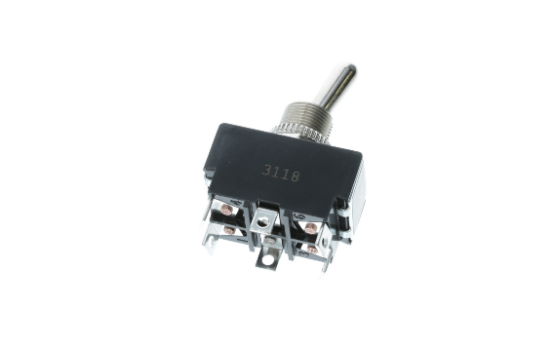

TB1-2H-DC-5
Switch Type |
Toggle Switch |
Rating |
21A 14VDC, 20A 125VAC 10A 277VAC, 1 1/2HP 125-250VAC, 10(4)A 125/250VAC |
Circuitry |
6P DPDT |
Position |
ON-OFF-(ON) |
Terminal |
Solder Lug |
Actuator |
|
Cut Out |
ø12.2 |
Depth |
6 mm max |
Technical Diagram |
TB1-2H-DC-5 |
| Property | Value |
|---|---|
| Contact resistance | 50m ohm Max |
| Insulation resistance | DC 500V 100M ohm Min |
| Dielectric strength | AC 1500V 1 minute |
| Operation Temperature | - |
| Property | Value |
|---|---|
| Frame / Housing | - |
| Hex Nut | 1 hex nut assy, 1 knurl nut assy |
