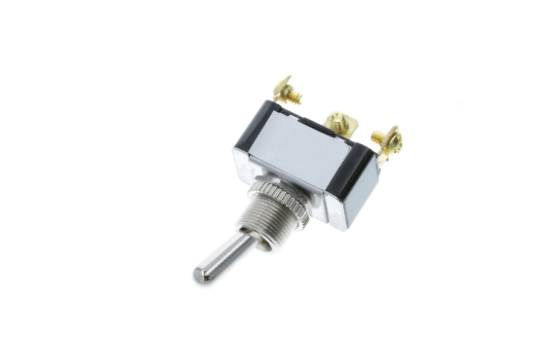

TA2-1G-DC-6-O
Switch Type |
Toggle Switch |
Rating |
21A 14VDC, 20A 125VAC 10A 277VAC, 3/4HP 125-250VAC, 12(4)A 125/250VAC |
Circuitry |
3P SPDT |
Position |
(ON)-OFF-(ON) |
Terminal |
#6-32 Screw |
Actuator |
|
Cut Out |
ø12.2 |
Depth |
6 mm max |
Technical Diagram |
TA2-1G-DC-6-O |
| Property | Value |
|---|---|
| Certification |
|
| Contact resistance | 50m ohm Max |
| Insulation resistance | DC 500V 100M ohm Min |
| Dielectric strength | AC 1500V 1 minute |
| Operation Temperature | 0°C ~ 65°C |
| Property | Value |
|---|---|
| Waterproof IP | IP55 |
| Hex Nut | 1 hex nut assy, 1 knurl nut assy, 1 Internal O Ring |
