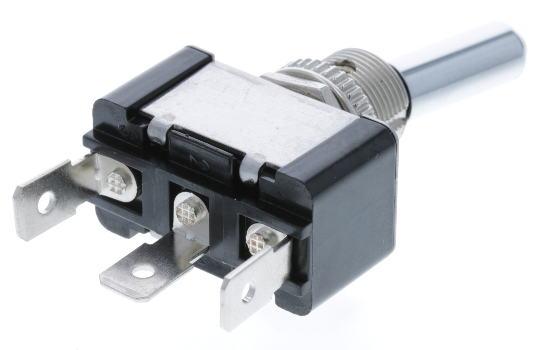

TA1B-1A-DC-1-AL
Switch Type |
Toggle Switch |
Rating |
20A 12VDC |
Circuitry |
3P SPST |
Position |
OFF-ON |
Terminal |
Quick Connect - 0.250" |
Actuator |
|
Cut Out |
ø12.2 |
Depth |
4 mm max |
Technical Diagram |
TA1B-1A-DC-1-AL |
| Property | Value |
|---|---|
| Contact resistance | 50m ohm Max |
| Insulation resistance | DC 500V 100M ohm Min |
| Dielectric strength | AC 1500V 1 minute |
| Operation Temperature | -20°C ~ 85°C |
| Property | Value |
|---|---|
| Hex Nut | 1 hex nut assy, 1 spring washer, 1 knurl nut assy |
| LED | Amber |
