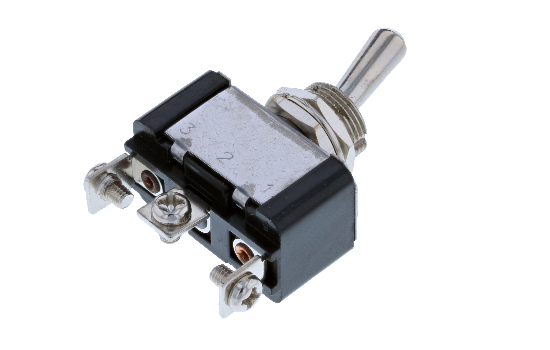

TA1-1F-DC-4

Switch Components offers a wide variety of nylon and metal heavy-duty Toggle Switches which are designed to fulfil the needs of today's automotive, marine and industrial applications along with a wide spectrum of general or custom electrical applications._0

Switch Components Inc’s TA1 toggles are available in different Single Pole circuits and with tab and screw terminal options. These switches can be used in a variety of applications including automotive, marine, commercial or industrial equipment._1

Switch Type	Toggle Switch
Rating	20A 12VDC 10A 24VDC
Circuitry	3P SPDT
Position	ON-OFF-ON
Terminal	M3 Screw
Actuator
Cut Out	ø12.2
Depth	4 mm max
Technical Diagram	TA1-1F-DC-4

Electrical Specifications
Material Specifications

Property	Value
Contact resistance	50m ohm Max
Insulation resistance	DC 500V 100M ohm Min
Dielectric strength	AC 1500V 1 minute
Operation Temperature	0°C ~ 65°C

Property	Value
Hex Nut	2 hex nut assy, 1 spring washer

Suggested Accessories

WT1

SC-R
