SRD2-2G-DC-1-BNN-W

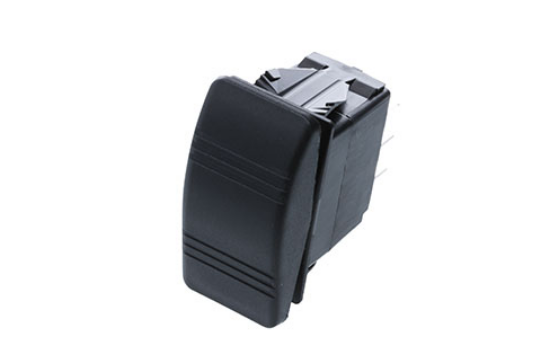

![SRD2-2G-DC-1-BNN-W ROCKER SWITCHES(1) At Switch Components, we offer a full field-proven line of rockers designed for your automotive, marine, industrial, and general electric use applications. From round to square faces, and sealed actuators, you can choose between a huge range of single pol_0](https://www.switchcomp.com/products/908/1696886042.png)
Switch Type |
Rocker Switch |
Rating |
21A 14VDC, 20A 125VAC 10A 250VAC |
Circuitry |
6P DPDT |
Position |
(ON)-OFF-(ON) |
Terminal |
Quick Connect - 0.250" |
Actuator |
Black, Nylon #66 |
Cut Out |
36.8*21.2 |
Depth |
0.75~3.0 mm max |
Technical Diagram |
SRD2-2G-DC-1-BNN-W |
Property | Value |
---|---|
Certification | ![]() |
Contact resistance | |
Insulation resistance | |
Dielectric strength |
Property | Value |
---|---|
Waterproof IP | IP67 |
Frame / Housing | Black, Nylon #66 |
Terminals / Contacts | Terminals 1 6: Silver plated copper |
Actuator | Black, Nylon #66 |
