SRD2-2A-DC-1-BRN

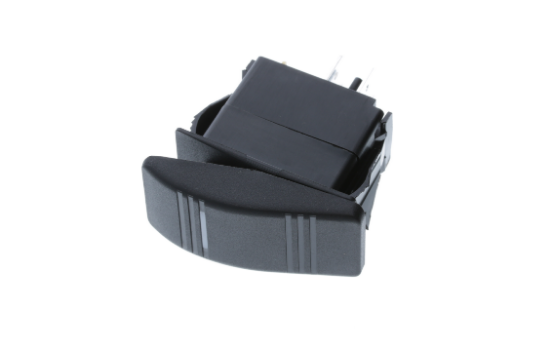

![SRD2-2A-DC-1-BRN-ROCKER SWITCHES(1) At Switch Components, we offer a full field-proven line of rockers designed for your automotive, marine, industrial, and general electric use applications. From round to square faces, and sealed actuators, you can choose between a huge range of single pol_0](https://www.switchcomp.com/products/542/1558028375.png)
![SRD2-2A-DC-1-BRN-ROCKER SWITCHES(2) SRD2 actuator can be illuminated with up to two bar shaped lenses available in four different colors. They are offered in a wide range of Single Pole and Double Pole momentary and latching circuits. Well know for its reliability and ergonomic design._1](https://www.switchcomp.com/products/542/1558028377.png)
Switch Type |
Rocker Switch |
Rating |
21A 14VDC |
Circuitry |
5P DPST |
Position |
OFF-ON |
Terminal |
Quick Connect - 0.250" |
Actuator |
Black, Nylon #66 |
Cut Out |
36.8*21.2 |
Depth |
0.75~3.0 mm max |
Technical Diagram |
SRD2-2A-DC-1-BRN |
Property | Value |
---|---|
Certification | ![]() |
Contact resistance | - |
Insulation resistance | - |
Dielectric strength | - |
Operation Temperature | - |
Property | Value |
---|---|
Waterproof IP | IP56 |
Frame / Housing | Black, Nylon #66 |
Terminals / Contacts | Terminals 2, 3, 5, 6: Silver plated copper. Terminal 7: Brass |
LED | Red |
Actuator | Black, Nylon #66 |
Lens | Lens 1: PC, White diffused. Lens 2: Red |
