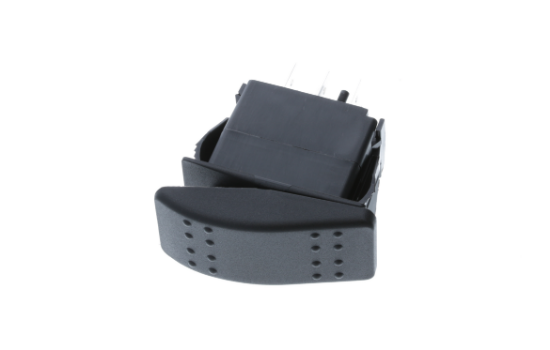

SRD1-2F-DC-1-BNN
Switch Type |
Rocker Switch |
Rating |
21A 14VDC, 20A 125VAC 10A 250VAC |
Circuitry |
6P DPDT |
Position |
ON-OFF-ON |
Terminal |
Quick Connect - 0.250" |
Actuator |
Black, Nylon #66 |
Cut Out |
36.8*21.2 |
Depth |
0.75~3.0 mm max |
Technical Diagram |
SRD1-2F-DC-1-BNN |
| Property | Value |
|---|---|
| Certification |
|
| Contact resistance | - |
| Insulation resistance | - |
| Dielectric strength | - |
| Operation Temperature | - |
| Property | Value |
|---|---|
| Waterproof IP | IP56 |
| Frame / Housing | Black, Nylon #66 |
| Terminals / Contacts | Terminals 1 6: Silver plated copper |
| Actuator | Black, Nylon #66 |
