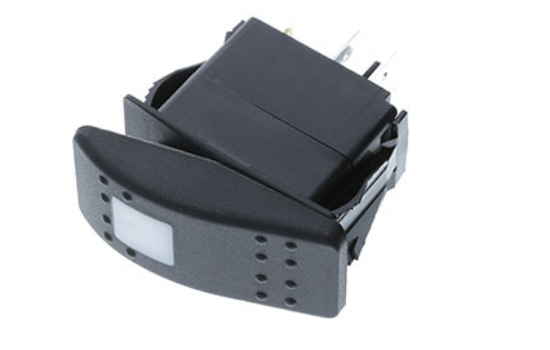

SRD1-2A-DC-1-BRN-W
Switch Type |
Rocker Switch |
Rating |
21A 14VDC |
Circuitry |
5P DPST |
Position |
OFF-ON |
Terminal |
Quick Connect - 0.250" |
Actuator |
Black, Nylon #66 |
Cut Out |
36.8*21.2 |
Depth |
0.75~3.0 mm max |
Technical Diagram |
SRD1-2A-DC-1-BRN-W |
| Property | Value |
|---|---|
| Certification |
|
| Contact resistance | |
| Insulation resistance | |
| Dielectric strength |
| Property | Value |
|---|---|
| Waterproof IP | IP67 |
| Frame / Housing | Black, Nylon #66 |
| Terminals / Contacts | Terminals 2, 3, 5, 6: Silver plated copper. Terminal 7: Brass |
| LED | Red |
| Actuator | Black, Nylon #66 |
| Lens | Lens 1: PC, White diffused. Lens 2: Red |
