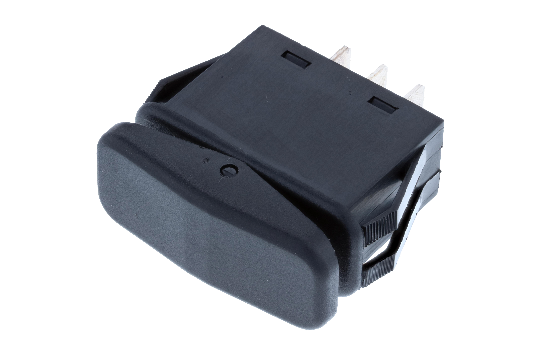

SRC1-1G-DC-1-B
Switch Type |
Rocker Switch |
Rating |
20A 14VDC 10A 24VDC, 20A 125VAC 10A 250VAC, 3/4HP 125-250VAC, 10(4)A 250VAC |
Circuitry |
3P SPDT |
Position |
(ON)-OFF-(ON) |
Terminal |
Quick Connect - 0.250" |
Actuator |
Black, Nylon #66 +33%GF |
Cut Out |
36.8*15.3 |
Depth |
0.75~5.0 mm max |
Technical Diagram |
SRC1-1G-DC-1-B |
| Property | Value |
|---|---|
| Certification |
|
| Contact resistance | 50m ohm Max |
| Insulation resistance | DC 500V 100M ohm Min |
| Dielectric strength | AC 1500V 1 minute |
| Operation Temperature | -20°C~85°C |
| Property | Value |
|---|---|
| Waterproof IP | IP56 |
| Frame / Housing | Black, Nylon #66 |
| Terminals / Contacts | Silver plated, copper alloy |
| Actuator | Black, Nylon #66 +33%GF |
