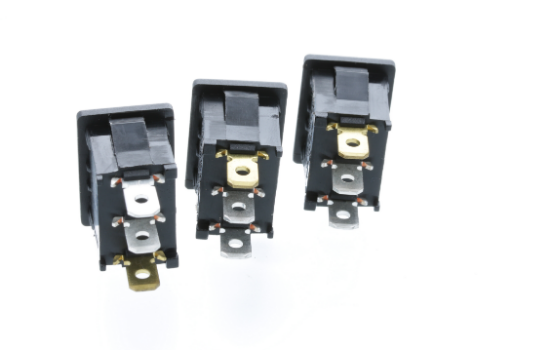

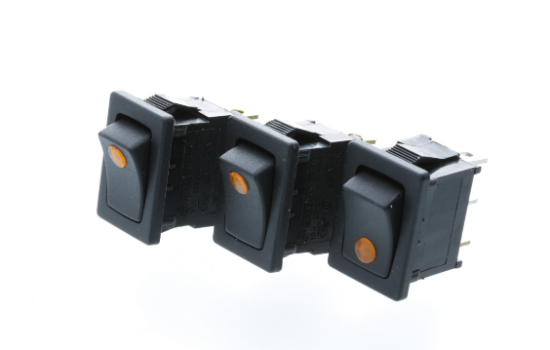

RF2-1A-DC-2-AL
Switch Type |
Rocker Switch |
Rating |
16A 12VDC |
Circuitry |
3P SPST |
Position |
OFF-ON |
Terminal |
Quick Connect - 0.187" |
Actuator |
Black, Nylon #66 |
Cut Out |
19.2*13.0 |
Depth |
0.75~3.0 mm max |
Technical Diagram |
RF2-1A-DC-2-AL |
| Property | Value |
|---|---|
| Certification |
|
| Contact resistance | 50m ohm Max |
| Insulation resistance | DC 500V 100M ohm Min |
| Dielectric strength | AC 1500V 1 minute |
| Operation Temperature | -25°C~85°C |
| Property | Value |
|---|---|
| Frame / Housing | Black, Nylon #66 |
| Terminals / Contacts | Silver plated, copper alloy |
| LED | Amber |
| Actuator | Black, Nylon #66 |
| Lens | Amber, PC |
