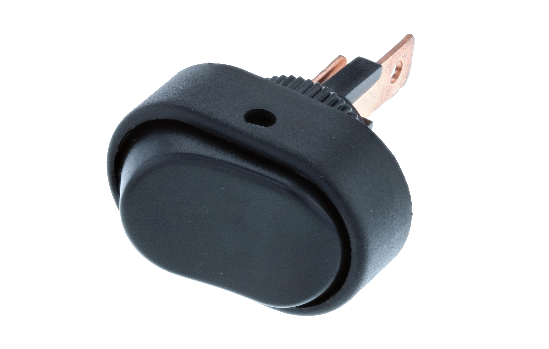

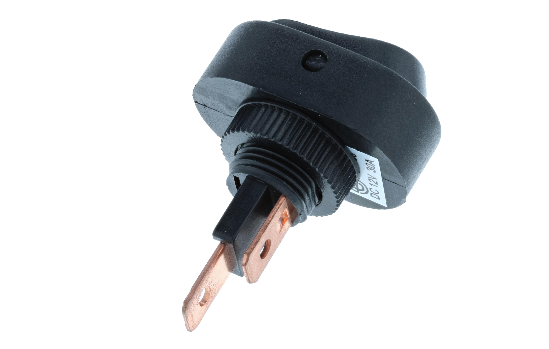

RD1-1A-DC-1-B
![RD1-1A-DC-1-B-rocker(1) ROCKERS SWITCHES_0](https://www.switchcomp.com/products/319/1538400618.png)
![RD1-1A-DC-1-B-rocker(2) ROCKERS_1](https://www.switchcomp.com/products/319/1538400619.png)
Switch Type |
Rocker Switch |
Rating |
30A 12VDC |
Circuitry |
2P SPST |
Position |
OFF-ON |
Terminal |
Quick Connect - 0.250" |
Actuator |
Black, Nylon #66 |
Cut Out |
ø12.2 |
Depth |
4 mm max |
Technical Diagram |
RD1-1A-DC-1-B |
Property | Value |
---|---|
Contact resistance | 50m ohm Max |
Insulation resistance | DC 500V 100M ohm Min |
Dielectric strength | AC 1500V 1 minute |
Operation Temperature | -25°C~85°C |
Property | Value |
---|---|
Frame / Housing | Black, Nylon #66 |
Actuator | Black, Nylon #66 |
