RB2-1A-DC-2-GL

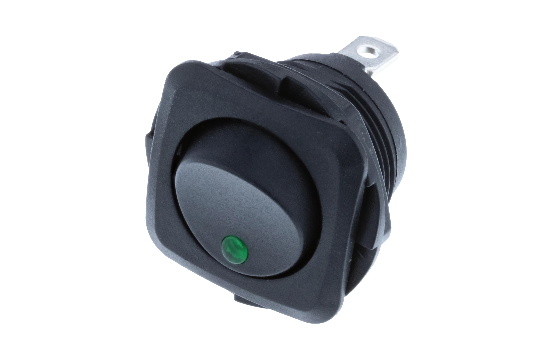

![RB2-1A-DC-2-GL-rocker(1) ROCKERS_0](https://www.switchcomp.com/products/308/1538400326.png)

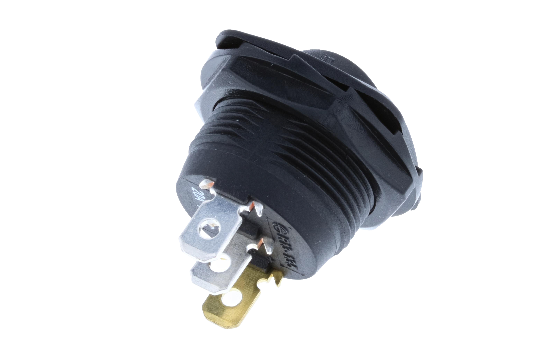

![RB2-1A-DC-2-GL-rocker(2) ROCKERS SWITCHES_1](https://www.switchcomp.com/products/308/1538400327.png)
Switch Type |
Rocker Switch |
Rating |
20A 14VDC |
Circuitry |
3P SPST |
Position |
OFF-ON |
Terminal |
Quick Connect - 0.187" |
Actuator |
Black, Nylon #66 |
Cut Out |
ø20.2 |
Depth |
6 mm max |
Technical Diagram |
RB2-1A-DC-2-GL |
Property | Value |
---|---|
Contact resistance | 50m ohm Max |
Insulation resistance | DC 500V 100M ohm Min |
Dielectric strength | AC 1500V 1 minute |
Operation Temperature | -20°C~85°C |
Property | Value |
---|---|
Frame / Housing | Black, Nylon #66 +33%GF |
Terminals / Contacts | Silver plated, Copper alloy |
LED | Green |
Actuator | Black, Nylon #66 |
Lens | Green, PC |
