RA5-1A-DC-2-RL

AT Switch Components, we offer a full field-proven line of rockers designed for your automotive, marine, industrial, and general electric use applications. From round to square faces, and sealed actuators, you can choose between a huge range of single pol_0

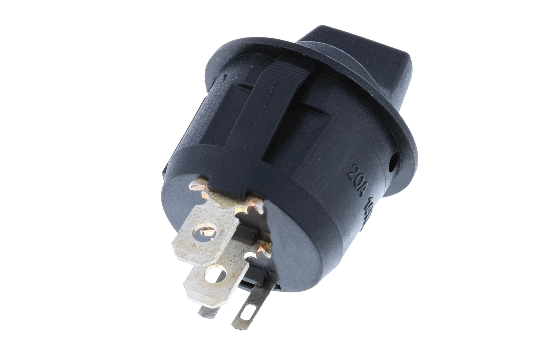

RA5 Round Rockers are illuminated by a dot LED offered in four different colors. Its snap-in design is compatible with a majority of standard panel cutouts. Used in a wide variety of applications including appliances and computers and peripherals._1

Switch Type	Rocker Switch
Rating	20A 14VDC
Circuitry	4P SPST
Position	OFF-ON
Terminal	Quick Connect - 0.187"
Actuator	Black, Nylon #66
Cut Out	ø20.2
Depth	0.7~3.0 mm max
Technical Diagram	RA5-1A-DC-2-RL

Electrical Specifications
Material Specifications

Property	Value
Contact resistance	50m ohm Max
Insulation resistance	DC 500V 100M ohm Min
Dielectric strength	AC 1500V 1 minute
Operation Temperature	-25°C~85°C

Property	Value
Frame / Housing	Black, Nylon #66
Terminals / Contacts	Silver plated, Copper alloy
LED	Red
Actuator	Black, Nylon #66
