PD Series
Contact your Switch Components sales representative at sales@switchcomp.com for more illumination and circuit options. Custom colors are and legends are also available.

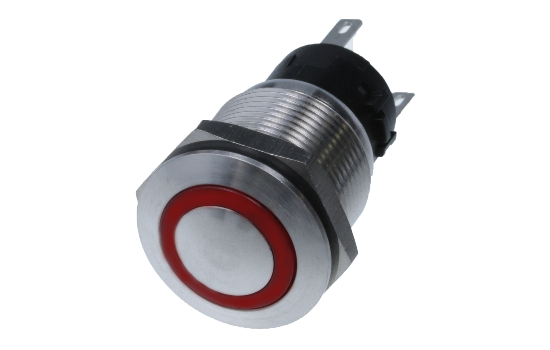

![PD-1E-DC-9-RL-PUST BUTTON(1) Switch Component’s Inc anti-vandal switches are commonly used for vandal resistance in public applications. Designed with a stainless steel body and sealed to an IP67 rating.](https://www.switchcomp.com/products/subseries/12/1697749389.png)
![PD-1E-DC-9-UL-PUST BUTTON(1) Switch Component’s Inc anti-vandal switches are commonly used for vandal resistance in public applications. Designed with a stainless steel body and sealed to an IP67 rating, PD series is available in three ring illuminated colors: red, blue, and green an](https://www.switchcomp.com/products/subseries/12/1555965177.png)
![PD-1E-DC-9-RL-PUST BUTTON(1) Switch Component’s Inc anti-vandal switches are commonly used for vandal resistance in public applications. Designed with a stainless steel body and sealed to an IP67 rating.](https://www.switchcomp.com/products/subseries/12/1697749389.png)
![PD-1E-DC-9-UL-PUST BUTTON(1) Switch Component’s Inc anti-vandal switches are commonly used for vandal resistance in public applications. Designed with a stainless steel body and sealed to an IP67 rating, PD series is available in three ring illuminated colors: red, blue, and green an](https://www.switchcomp.com/products/subseries/12/1555965177.png)
![PD_360view](https://www.switchcomp.com/images/360-Icon.jpg)
Electrical Rating |
10A 14VDC |
Circuitry |
SPDT,DPDT |
Terminal |
Quick Connect - 0.110" |
Position |
ON-(ON),ON-ON |
Actuator |
Ring Illumination - Blue LED Ring Illumination - Green LED Ring Illumination - Red LED |
Certificates |
![]() |
Part Name | Circuitry | Rating | Action | Terminal | Actuator |
---|---|---|---|---|---|
PD-1D-DC-9-GL | 5P SPDT | 10A 14VDC | ON-ON | Quick Connect - 0.110" | Ring Illumination - Green LED |
PD-1D-DC-9-RL | 5P SPDT | 10A 14VDC | ON-ON | Quick Connect - 0.110" | Ring Illumination - Red LED |
PD-1D-DC-9-UL | 5P SPDT | 10A 14VDC | ON-ON | Quick Connect - 0.110" | Ring Illumination - Blue LED |
PD-1E-DC-9-GL | 5P SPDT | 10A 14VDC | ON-(ON) | Quick Connect - 0.110" | Ring Illumination - Green LED |
PD-1E-DC-9-RL | 5P SPDT | 10A 14VDC | ON-(ON) | Quick Connect - 0.110" | Ring Illumination - Red LED |
PD-1E-DC-9-UL | 5P SPDT | 10A 14VDC | ON-(ON) | Quick Connect - 0.110" | Ring Illumination - Blue LED |
PD-2D-DC-9-GL | 8P DPDT | 10A 14VDC | ON-ON | Quick Connect - 0.110" | Ring Illumination - Green LED |
PD-2D-DC-9-RL | 8P DPDT | 10A 14VDC | ON-ON | Quick Connect - 0.110" | Ring Illumination - Red LED |
PD-2D-DC-9-UL | 8P DPDT | 10A 14VDC | ON-ON | Quick Connect - 0.110" | Ring Illumination - Blue LED |
PD-2E-DC-9-GL | 8P DPDT | 10A 14VDC | ON-(ON) | Quick Connect - 0.110" | Ring Illumination - Green LED |
PD-2E-DC-9-RL | 8P DPDT | 10A 14VDC | ON-(ON) | Quick Connect - 0.110" | Ring Illumination - Red LED |
PD-2E-DC-9-UL | 8P DPDT | 10A 14VDC | ON-(ON) | Quick Connect - 0.110" | Ring Illumination - Blue LED |
"Drawings for reference only. The specifications and approvals subject to change without notice"
