PC-1A-DC-1-RL
![PC-1A-DC-1-RL-Push switches(1) pc Push Button Switch Series is designed with a round actuator and body and an IP65 rated splash proof rubber boot that ensures protection against water and moisture (IP 65). Find PC Series available in either a momentary or latching actuation_0](https://www.switchcomp.com/products/52/PC-1A-DC-1-RL.jpg)

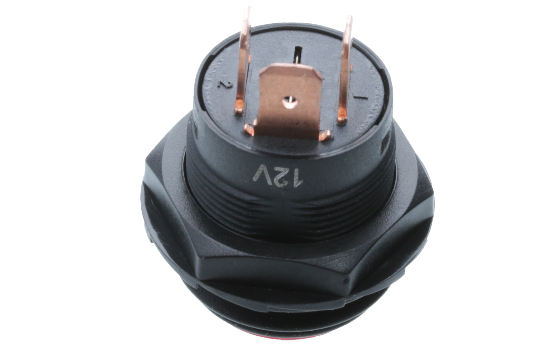

![PC-1A-DC-1-RL-Push switches(2) PC-1A-DC-1-RLnew14_1](https://www.switchcomp.com/products/52/1556748177.png)
Switch Type |
Push Switch |
Rating |
10A 14VDC |
Circuitry |
3P SPST |
Position |
OFF-ON |
Terminal |
Quick Connect - 0.250" |
Actuator |
Red clear, PC (94V 2) |
Cut Out |
ø22.0 |
Depth |
7mm max |
Technical Diagram |
PC-1A-DC-1-RL |
Property | Value |
---|---|
Certification | ![]() |
Contact resistance | 50m ohm Max |
Insulation resistance | DC 500V 100M ohm Min |
Dielectric strength | AC 1500V 1 minute |
Operation Temperature | -25°C~85°C |
Property | Value |
---|---|
Waterproof IP | IP65 |
Frame / Housing | Black, Nylon #66 |
LED | Red |
Actuator | Red clear, PC (94V 2) |
Waterproof Rubber | Black, Silicone |
