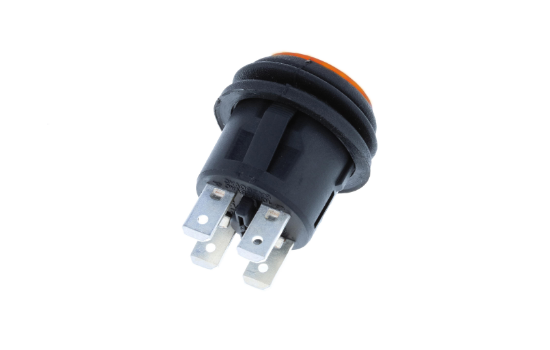

PB-1B-DC-2-AIL
Switch Type |
Push Switch |
Rating |
20A 14VDC |
Circuitry |
4P SPST |
Position |
OFF-(ON) |
Terminal |
Quick Connect - 0.187" |
Actuator |
PC clear (94V 2) |
Cut Out |
ø20.2 |
Depth |
0.7~2.5 mm max |
Technical Diagram |
PB-1B-DC-2-AIL |
| Property | Value |
|---|---|
| Certification |
|
| Contact resistance | 50m ohm Max |
| Insulation resistance | DC 500V 100M ohm Min |
| Dielectric strength | AC 1500V 1 minute |
| Operation Temperature | -25°C~85°C |
| Property | Value |
|---|---|
| Waterproof IP | IP65 |
| Frame / Housing | Black, Nylon #66 |
| Terminals / Contacts | Silver plated, Copper alloy |
| LED | Amber 12V |
| Actuator | PC clear (94V 2) |
| Waterproof Rubber | Black, Silicone |
