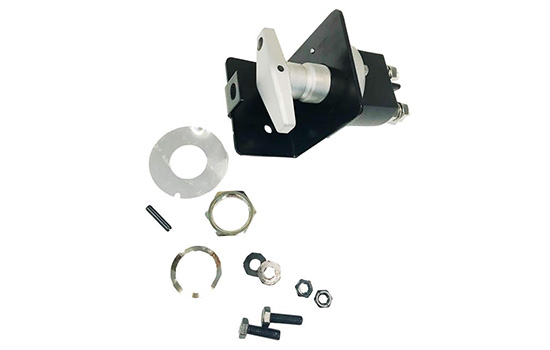

HDB6-1A-3-T3
Switch Function |
OFF - ON |
Continuous Rating |
500A 12VDC, 300A 24VDC |
Intermittent Rating |
2000A / 5secs |
Cranking Rating |
|
Features |
Lock-Out Bracket |
Terminal |
M20-0.8 studs |
Mounting Dimensions |
M30-1.5 thread |
Notes |
Does not disconnect alternator or generator field circuit. On vehicles equipped with alternators, engine must be shut off to avoid potential damage to alternator diodes |
Technical Diagram |
HDB6-1A-3-T3 |
| Property | Value |
|---|---|
| Contact Resistance | |
| Insulation resistance | |
| Dielectric strength | |
| Operation Temperature |
| Property | Value |
|---|---|
| Frame / Housing | |
| Cover / Bottom | |
| Terminals / Contacts | M20-0.8 studs |
| Actuator |
