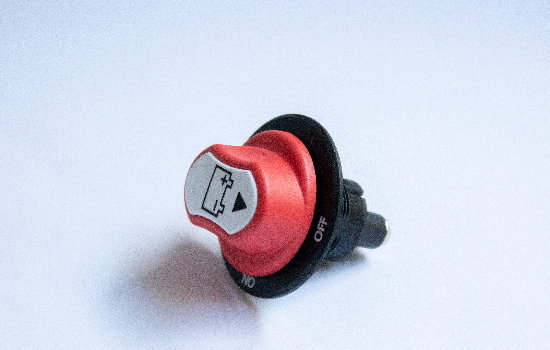

BC1-DC

Panel mounted, ignition protected battery switches with ON-OFF actuation, allowing for a safe and reliable shutdown of power during maintenance. Their compact design and the different continuous rating options make these switches versatile and perfect for_0

Switch Function	OFF - ON
Continuous Rating	50A 50VDC
Intermittent Rating	75A
Cranking Rating	300A / 5secs
Features

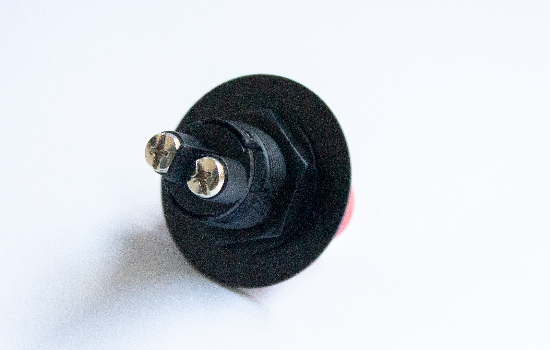

Terminal	M4 Screw
Mounting Dimensions	⌀22.2mm
Notes
Technical Diagram	BC1-DC

Electrical Specifications
Material Specifications

Property	Value
Contact Resistance
Insulation resistance
Dielectric strength
Operation Temperature

Property	Value
Frame / Housing
Cover / Bottom
Terminals / Contacts	M4 Screw
Actuator
